PerformAIRE ECLIPSE
Contingency Item!

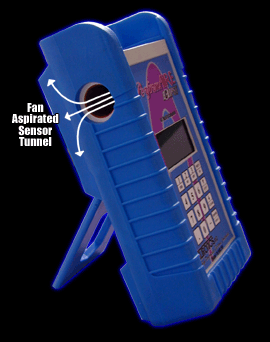

Our newest model to the PerformAIRE lineup is the PerformAIRE ECLIPSE This state of the art handheld model features an internal fan aspirated "sensor tunnel" that allows air to flow directly across the sensors for accurate and ultra quick weather readings, even in direct sunlight!

"Other" handheld fan controlled units may help stabilize the reading faster, but will not allow for accurate readings in direct sunlight! The PerformAIRE ECLIPSE is the only handheld unit that has this capability.

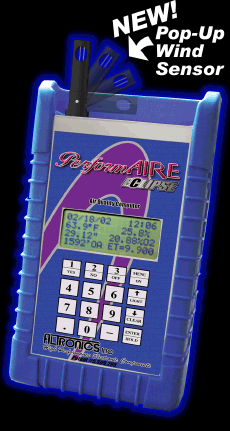

The New Pop-Up Wind sensor allows for Wind Speed and Gust measurements. Sensor is ultra fast responding and has no moving parts to wear out!. ET and Throttle stop predictions can now be adjusted automatically for wind effects on the fly!

The PerformAIRE ECLIPSE also features many new enhancements included the newest in battery technology a (Li-Ion) Lithium Ion rechargeable battery (charger included). This Li-Ion battery allows unit to take several hundred air samples without needing to be recharged.

The PerformAIRE ECLIPSE is packed with the same prediction capabilities as the original PerformAIRE, but also allows for 1 run predictions with preset and user defined ratios, multiple weather variable predictions (density altitude, oxygen altitude, air density ratio, correction factor, dew point, Grains of Water, and vapor pressure), and corrects prediction for wind effects, which are customizable.

Air sample readings are made easier with auto stabilization technology that automatically lets user know when the weather reading has stabilized and is accurate.

The backlit LCD display allows for easy night viewing and the self-standing rubber boot with removable wrist strap and optional belt clip protects unit and makes it easy to carry.


Patent #5,509,295
Invented and Manufactured By

SPONSOR

Contingency Offered!


FEATURES
Portable
Ultra Quick Response
Fan Aspirated
Auto Stabilizing
Temperature
Relative Humidity
Absolute Pressure
% Oxygen*
Air Density Ratio
Dew Point
Vapor Pressure
Grains of Water
Density Altitude
Oxygen Altitude*
Data Entry Keypad
Large LCD Display
Stores 400 Runs
10 Data Bases
ET Prediction
Throttle Stop Prediction
Throttle Stop Ratio
Last Air Sample Hold
Index Plate Prediction
Run Completion
Bad Run Detection
Last Air Sample Hold
Sea Level ET
1 Run Predictions
Multiple Variable Predictions
Wind Correction
Rechargable LI-ION Battery
Backlit LCD Display
Downloading*
Data Analysis*
WIND Speed
*(Optional)
A density altitude measurement can easily be off many hundred feet when considering a change in the percent of oxygen in the atmosphere. The optional oxygen sensing capability allows the PerformAIRE to measure the percent of oxygen in the atmosphere. By knowing the density and the percentage of oxygen in the atmosphere the PerformAIRE can calculate the exact amount of oxygen in the atmosphere, which directly relates to performance.

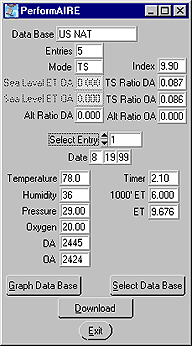

The PerformAIRE computer contains a data base that allows for storage of runs and then uses this data to automatically predict ETs, Throttle Stop Settings, Jet Sizes, etc. The predicted values are continually updated with each new sample of air. The density altitude and oxygen altitude will automatically be stored with each run if an oxygen sensor has been installed. The stored runs are also tagged with a time and date stamp to allow for later referencing. The expandable data base is capable of storing hundreds of runs and will allow those runs to be stored in separate data bases, which can be labeled for specific cars or tracks.

1 run predictions allow for user to use preset or custom ratios for ET and/or Throttle stop predictions and select fuel type.

Wind Correction allows predictions to be corrected for wind speed and direction. User can select from multiple car bady types and "tune" the wind effects to the vehicle with adjustable settings.

The PerformAIRE computer's data base can be downloaded into a PC. One click of a mouse can download the data directly into a spreadsheet where the runs will be automatically charted showing a visually relationship between your cars performance and the changing atmosphere. This allows for the easy removal of bad runs from a database and more accurate predictions.

Besides all the added features and ease of use, there is one main reason why the PerformAIRE air quality computer is superior to all other weather stations/calculators. First one must ask themselves, what is the most important capability a weather station must possess? We hope you would answer the ability to accurately and repeatedly measure the atmosphere one is racing in. A weather station without this quality is useless.

Detecting small changes in the atmosphere or using inaccurate measurements can be the difference between winning and losing. As little as a 100 foot change in density altitude can noticeably change the performance of an automobile. Most racers do not realize that a minor change in the atmosphere can equate to a major change in density or oxygen altitude. On average, a 1degree change in temperature, a 0.1 inHg change in pressure, a 10% change in humidity, or a 0.1% change in oxygen can be more than a 100 foot change in altitude. Instruments being used in other weather stations have variables that make it impossible to measure the atmosphere at a level needed to predict the performance of a racecar. These inaccuracies can stem from a personÕs inability to correctly distinguish what the instrument is reading, the effect temperature has on the instrument, and the instruments accuracy/repeatability ratings.

The following examples further explain common errors found by using other weather stations.

Ex: Ask five people to tell you what the same dial temperature meter is reading and they will all give you a different number.

Ex: Most racers do not consider the effect a change in temperature can have on an uncompensated digital or mechanical barometer or hydrometer. A barometer calibrated at 70 degrees measures 29.00inHg. Then it is exposed to the heat of 90 degrees, but with the same pressure. The components that make up this barometer can expand or contract causing it to measure 29.25inHg. An error of 0.25inHg would cause over a 250' Density Altitude error. Since changes in temperature, humidity, pressure, and % oxygen do not equate linearly with altitude, it is unfeasible to state that an inaccurate or non calibrated instruments will produce correct results. A temperature gage that always measures 5 degrees high in temperature will not allow for accurate predictions.

When trying to use standard weather instruments (digital or mechanical) one would be lucky to compute density altitude within a few hundred feet of the actual.

The PerformAIRE air quality computer's state of the art sensors allow it to measure density altitude with an accuracy of better than plus or minus 50 feet over the entire temperature range and with even closer repeatability. No other weather station, digital or mechanical, can claim this degree of accuracy. Not even other all in one digital weather station has this degree of accuracy!

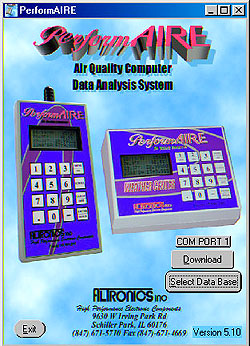

Download/Data Analysis Kit

Click here for demo!

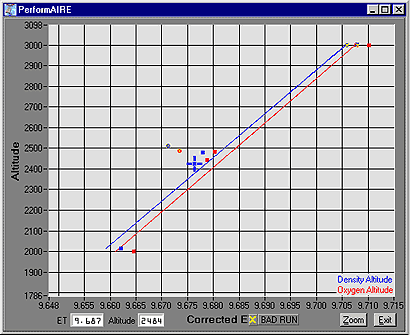

Automatically generates graph that show bad runs and how data effects predictions.

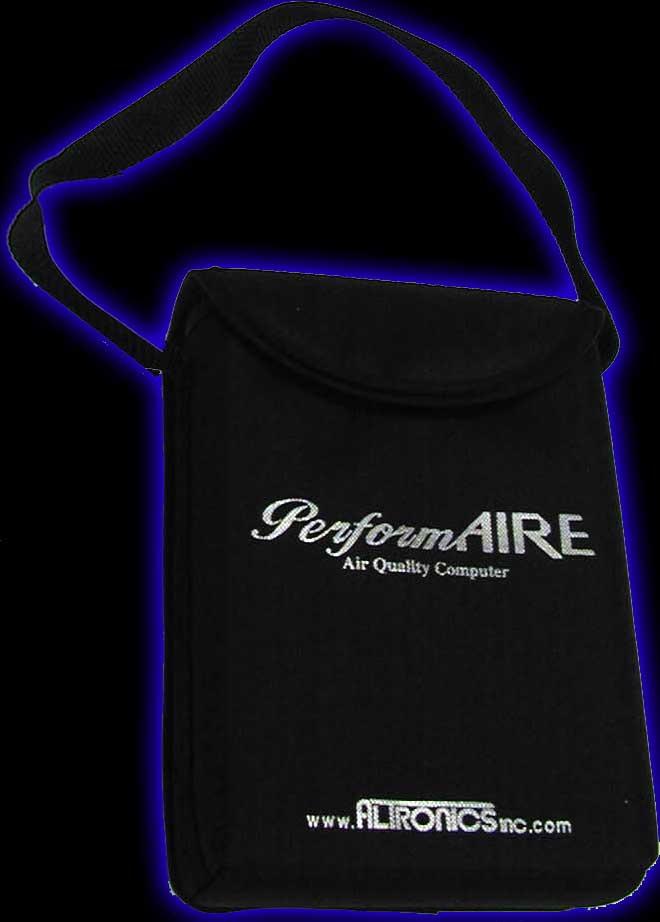

Carrying Case Part# ALT-PA-CC





Now with integrated Restrictor plate Prediction!

Click here for more info.



PerformAIRE ECLIPSE systems are completely upgradable. Options can be added.
Check out our trailer based systems! PerformAIRE WEATHER CENTER or PerformAIRE PC




SKUImageNamePrice
ALT-PAE
Base unit (FAN Controlled) **CONTINGENCY ITEM**

Base unit (FAN Controlled) **CONTINGENCY ITEM**
Price: $599.99
ALT-PAE-WD
Base unit with Wind Sensor **CONTINGENCY ITEM**

Base unit with Wind Sensor **CONTINGENCY ITEM**
Price: $675.99
ALT-PAE-O2
Base unit with Oxygen Sensor and Wind Sensor **CONTINGENCY ITEM**

Base unit with Oxygen Sensor and Wind Sensor **CONTINGENCY ITEM**
Price: $849.99
ALT-PA-CC
Carrying Case

PerformAIRE Carrying Case
Price: $24.99
ALT-PADL-SW Image Not Available Downloading Kit (Windows compatible) USB Style
Downloading Kit (Windows compatible) USB Style
Price: $74.99
ALT-PAE-CHARGER
PAE CHARGER

Replacement PerformAIRE Eclipse Charger
Price: $29.99
